Build and Measure a Minimal TEE Workload

What you will learn

This lesson covers:

Development and production modes
Simulators
Build inputs
Measurements
Reproducible builds
Signed images
Reference values
CI verification

Start with a small application

The first TEE application should perform one clear security function.

Examples include:

Hash a protected input
Sign a message after policy validation
Decrypt and transform one document
Compare two private values
Generate a key inside the TEE

Avoid beginning with:

Full database
Large AI stack
Multiple microservices
Complex blockchain protocol
Several external dependencies

A small first workload makes the measurement and trust boundary easier to understand.

Development modes are not production modes

TEE platforms often provide development or debug modes.

Debug mode may allow:

Attaching a debugger
Viewing protected state
More detailed logs
Relaxed signing rules
Special host access

These features are useful for development but may weaken the security guarantee.

AWS documents that Nitro Enclaves launched with debug or console options produce attestation documents with zeroed PCR measurements. Gramine documentation also distinguishes debug configurations from production configurations and warns against using insecure debugging options for production enclaves.

⚠

Never use debug mode in production. Zeroed or stub measurements mean any verifier policy that checks measurements will either reject the workload or, worse, be misconfigured to accept debug measurements.

Simulation is for functionality

A TEE simulator can test:

Application logic
Message formats
Host communication
Policy handling
Error paths
Deployment scripts

A simulator does not provide:

Hardware memory isolation
Real hardware attestation
Hardware key derivation
Real microarchitectural behaviour
Real firmware state
Protection from the host

Label simulated evidence clearly. Never allow production key services to trust simulator evidence.

What creates a measurement?

A workload measurement may depend on:

Binary
Kernel
Boot image
Runtime
Manifest
Configuration
Initial memory pages
File hashes
Image certificate
Security version
Debug state

The exact inputs depend on the platform.

AWS Nitro Enclave attestation can report measurements for the enclave image, kernel and bootstrap, application, parent role, instance identity, and signing certificate through different PCR values.

Build identity and source identity are different

A source-code repository may contain approved code. A measurement represents a built artifact.

Between the source and the measurement are:

Compiler
Linker
Dependencies
Build flags
Base image
File ordering
Timestamps
Build scripts
Packaging
Signing

A clean source repository does not prove that the running binary came from that source.

Reproducible builds

A build is reproducible when the same source code, build environment, and build instructions can recreate bit-for-bit identical specified artifacts.

Reproducible builds create a path for independent parties to compare a published binary with the source from which it was claimed to be built.

Reproducibility may require controlling:

Compiler version
Dependency versions
Build container
Locale
File timestamps
File ordering
Build path
Environment variables
Random build identifiers
Network-fetched dependencies

A measurement publication flow

A strong publication process may look like:

1. Review source-code commit. 2. Pin dependencies. 3. Define build environment. 4. Build the artifact. 5. Calculate the measurement. 6. Rebuild independently. 7. Confirm identical artifact or measurement. 8. Sign the release metadata. 9. Publish source commit, build instructions, measurement, and policy. 10. Add the measurement to the verifier's accepted values.

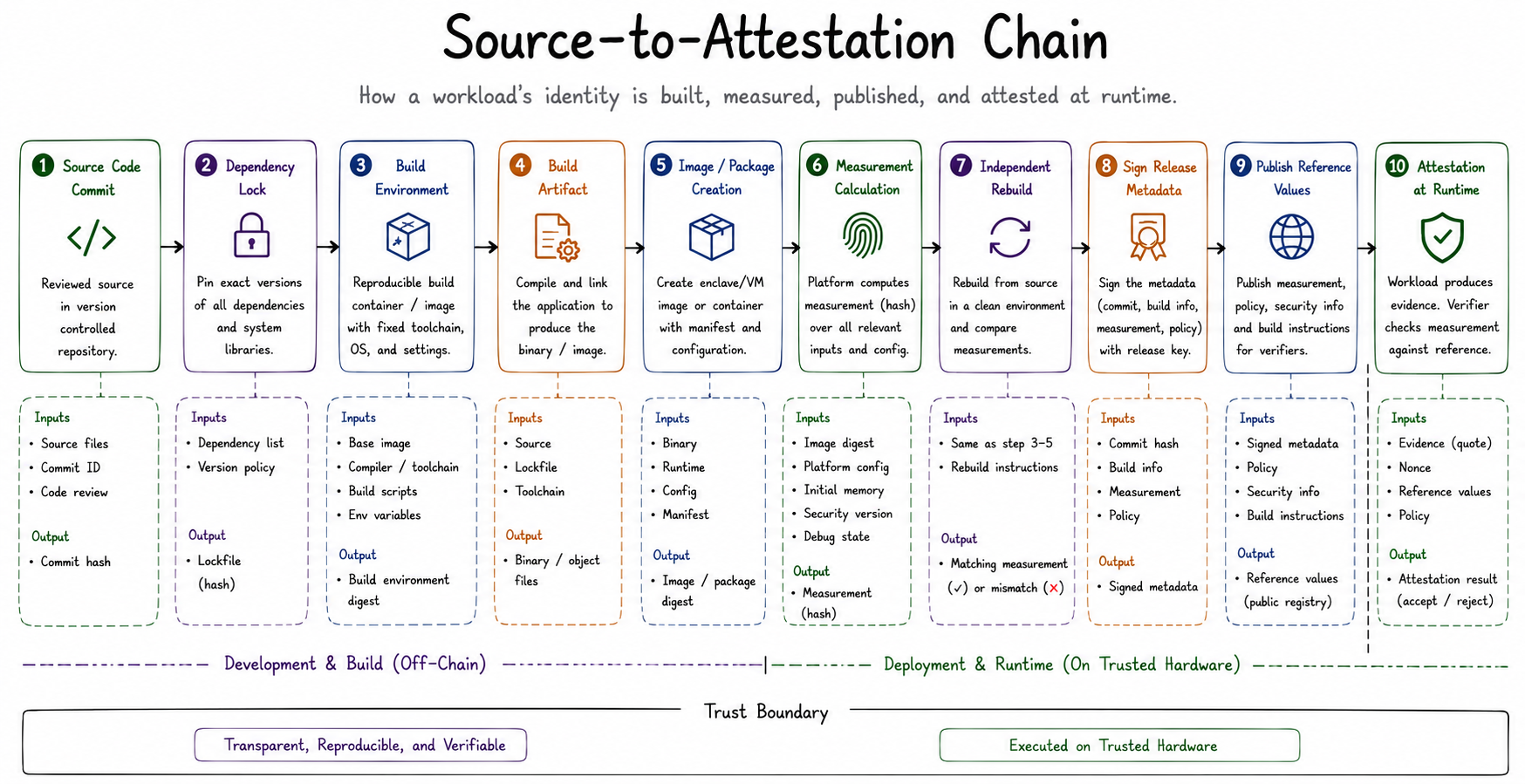

Source-to-attestation chain showing how source code, dependencies, the build environment, workload artifact, measurement, release signing, reference values, and runtime attestation connect.

Exact measurement versus signer identity

Exact measurement policy

The verifier accepts only one exact code or image measurement.

Benefit: Narrow authorization
Cost: Every build or update may create a new accepted value

Signer policy

The verifier accepts images signed by an approved signing authority.

Benefit: Easier updates
Cost: Security depends heavily on the signing key and update controls

A practical policy may combine:

Approved signer
Minimum security version
Allowed configuration
Debug disabled
Revocation list
Optional exact image measurement

Build pipeline example

`` Repository ↓ Pinned build container ↓ Dependency verification ↓ Compile application ↓ Create enclave or VM image ↓ Calculate measurement ↓ Independent rebuild ↓ Sign release metadata ↓ Publish accepted reference value ``

CI policy example

A continuous-integration pipeline should fail when:

Dependency lockfile changes without review
Debug mode is enabled
Signing key is unavailable through approved process
Rebuild produces a different measurement
Unexpected files enter the image
Security version decreases
Base image is not approved
Test evidence is sent to production policy

Protect the signing key

A workload-signing key may authorize code to receive secrets.

Protect it using:

HSM
Threshold approval
Offline signing
Short-lived signing service
Multi-person release control
Audit log
Key rotation
Revocation procedure

If the signing key is compromised, an attacker may sign a malicious workload that looks authorized under a signer-based policy.

Practical build checkpoint

Create a small protected service that:

1. Receives a message. 2. Calculates a hash. 3. Signs the hash with a key generated inside the protected environment. 4. Returns the signature. 5. Produces attestation evidence binding the application identity to a public key.

The learning goal is not the hashing function. The learning goal is understanding how source, binary, measurement, evidence, and policy connect.

Common mistakes

⚠

**Using debug mode in production** — Debug measurements are zeroed or stub values that undermine all verification. **Treating simulation as hardware security** — Simulators provide no hardware isolation or real attestation. **Publishing a measurement without build instructions** — Independent reproducibility requires both. **Accepting any image signed by one long-lived key** — Combine signer policy with minimum security version and revocation. **Ignoring configuration in identity policy** — Debug flags and configuration values are part of the measurement on many platforms. **Allowing the operator to change both workload and reference values** — These must be controlled independently to prevent self-certification. **Downloading unpinned dependencies during the build** — External dependencies fetched at build time introduce non-reproducibility and supply-chain risk.

Key takeaways

Begin with a small workload.
Keep development and production identities separate.
A measurement identifies a built state, not source code directly.
Reproducible builds connect source to binary more strongly.
Reference values must be protected and reviewed.
Signing keys are part of the TCB.

Check your understanding

1. Why can two builds from the same source produce different measurements? 2. What does a simulator fail to provide? 3. What is a reproducible build? 4. Why is a signing key a critical security asset? 5. What should happen when a production measurement changes?
